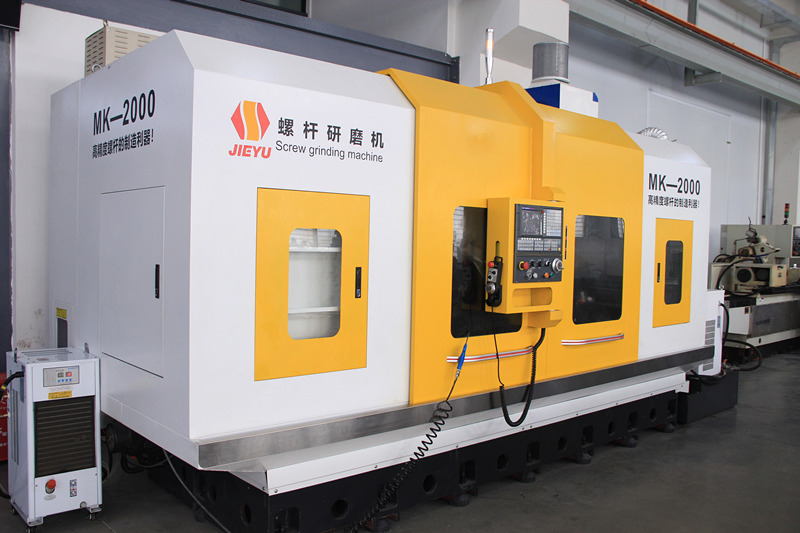

Features of screw automatic grinder:

1. The machining process is parameterized, without programming, input screw parameters and relevant process parameters, and complete the process automatically, and complete all kinds of different screw profiles at one time

2. The chuck adopts composite chuck, the center hole of the center is aligned, and the outer circle of the screw and the tooth bottom use the same processing standard to ensure the concentricity.

3. After the process preparation and debugging is completed, the process documents will be automatically generated, which can be saved to the U disk, computer and other memory according to the number. When necessary, the input equipment will be transferred out to save the process preparation and debugging time, and at the same time, the consistency of the process effect of the same batch of products can be ensured.

4. In the process of machining, the grinding wheel can be automatically trimmed and the trimming shape (R angle) can be programmed and controlled.

5. The cutting fluid is equipped with a cooling system, which can continuously cool the product during the processing to better ensure the accuracy.

6. Air floating structure is adopted for tailstock movement, which is labor-saving and light.

7. In the process of processing, the hood is closed, the water filtration circulation system and air filtration system of the equipment control the dust in the enclosed hood space for cleaning and recycling, and the working environment is environmentally friendly and clean.

Equipment parameters:
